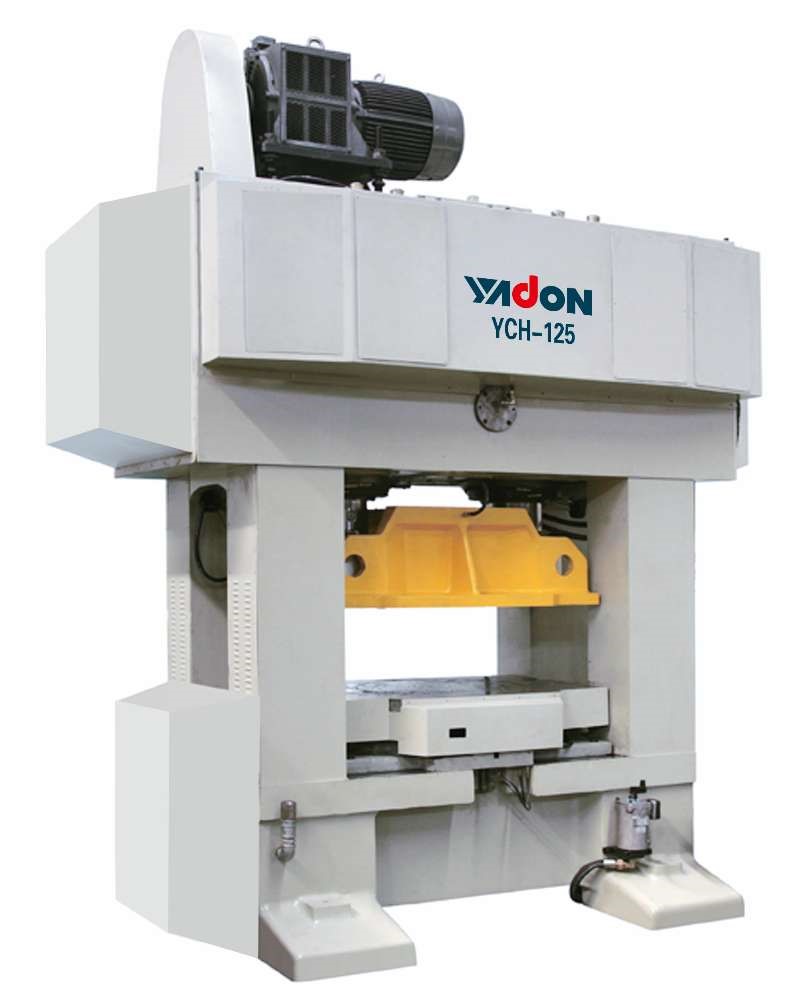

Fully automatic aluminum easy open ends making machine production line for beverage can packing

  • Fully automatic aluminum easy open ends making machine production line for beverage can packing
  • Fully automatic aluminum easy open ends making machine production line for beverage can packing
  • Fully automatic aluminum easy open ends making machine production line for beverage can packing

Fully automatic aluminum easy open ends making machine production line for beverage can packing

Product Description

Product Description

Product Application

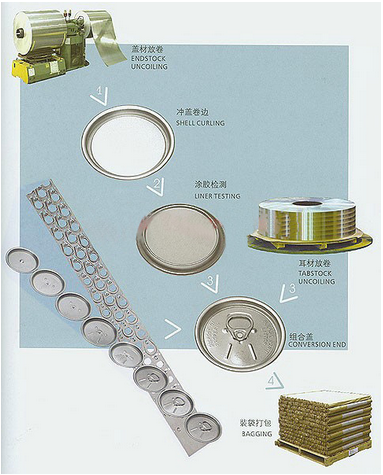

This machine is a high speed and high precision automatic cover production equipment. It is suitable for the cover made by the tinplate (aluminum), basic shell of easy open end, aerosol caps and the screw caps.The whole sheet (aluminum) from the cylinder feedstock, servo feeding, automatic position pushing, mechanical hand stuffing , servo feeding, cap blanking, automatic out of the cover to curling with fully automatic operation, no manual operation.
According to the customer's demand for production capacity, we have developed 40T, 60T, 120T three kinds of pressure presses, which can be installed with 1-7 dies respectively.According to the electrical configuration of the mechanical hand feeding, it is divided into three configurations, namely, the many-times empty stroke,2 -empty stroke and no one.
The whole production line should be equipped with automatic CNC punching press, high speed curling machine, high-speed lining machine, on-line detection machine, electromagnetic drying and counting packing machine.

SPECIFICATIONS FOR BOTTOM COVER (BASIC SHELL) MAKING PRODUCTION LINE
Parameters
Mode
GT2A4-120
GT2A4-120-H
GT2A4-60
Normal Pressure
120T
120T
60T
Max stroke times
200
240
200
Max die installed
7
7
3
Max sheet size
1100*1100
1100*1100
1100*1100
Max sheet thickness
0.4mm
0.4mm
0.4mm
Total Power
25kw
25kw
20kw
Installation size
3400*1500*2800
3400*1500*2800
2700*1300*2700
Total weight
14T
14T
10.8T

Main Features

1. Man-machine interface and simple operation.
2. Using the mechanical arm servo feeding, the automation degree is high.
3. Equipped with various alarm protection, safe and convenient to maintain.
4. Adopt the gantry bed, no gap guide running, when with high speed operation it has good stability and high precision.
5. Use the whole sheet blanking to improve efficiency and reduce the loss of raw materials.

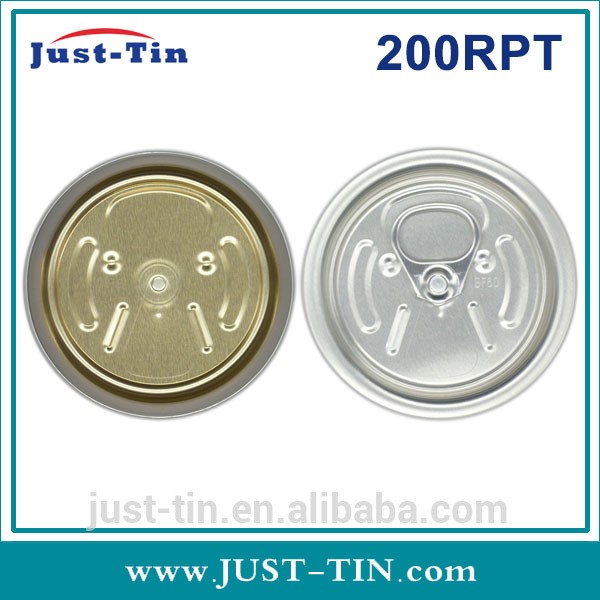

Finished Products
Detailed Images

Machine Parts

Name: Balance Cylinder

Brand: FESTO

Original: Germany

Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.

Main Features

Name: Pneumatic Components
Brand: CKD
Original: Japan

Energy saving, no pollution, high efficiency, low cost, safe and reliable, simple structure.

Machine Parts

Name: Magnetic Valve
Brand: MAC
Original: America
Ideal for applications where high flow and repeatability in a small package size are crucial. Simple cartridge design for easy adaptability.

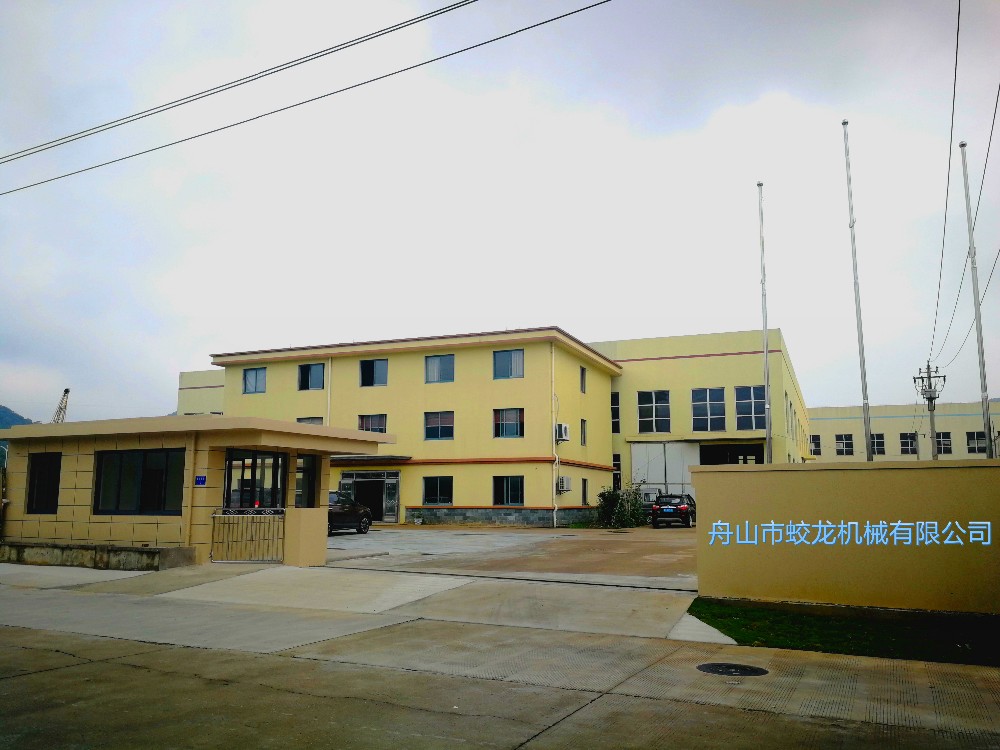

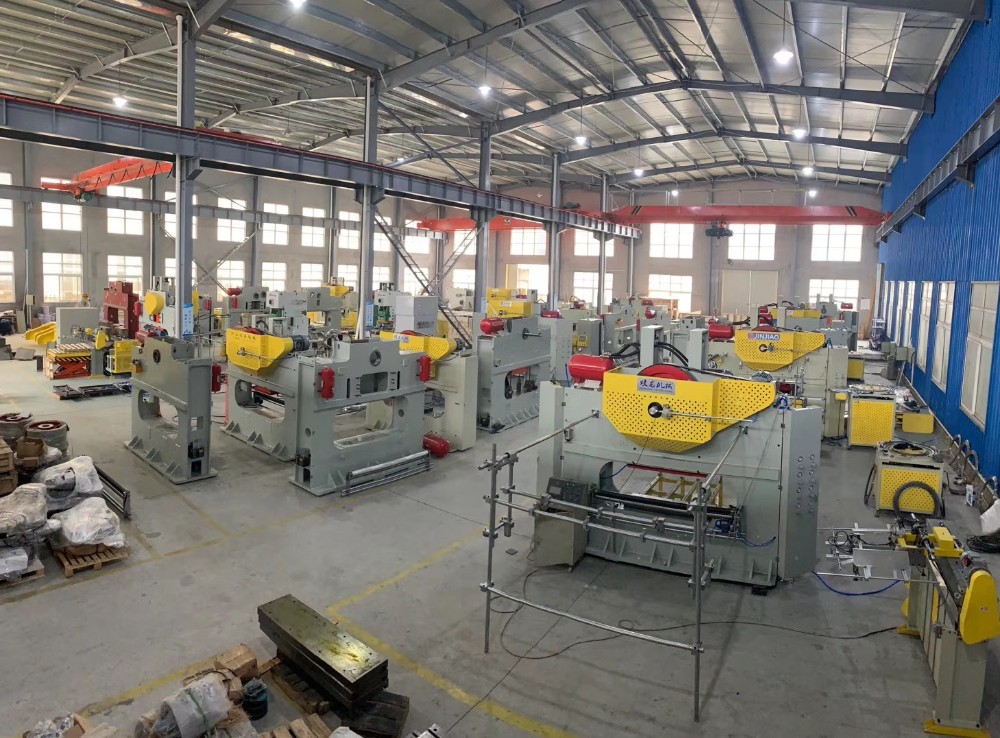

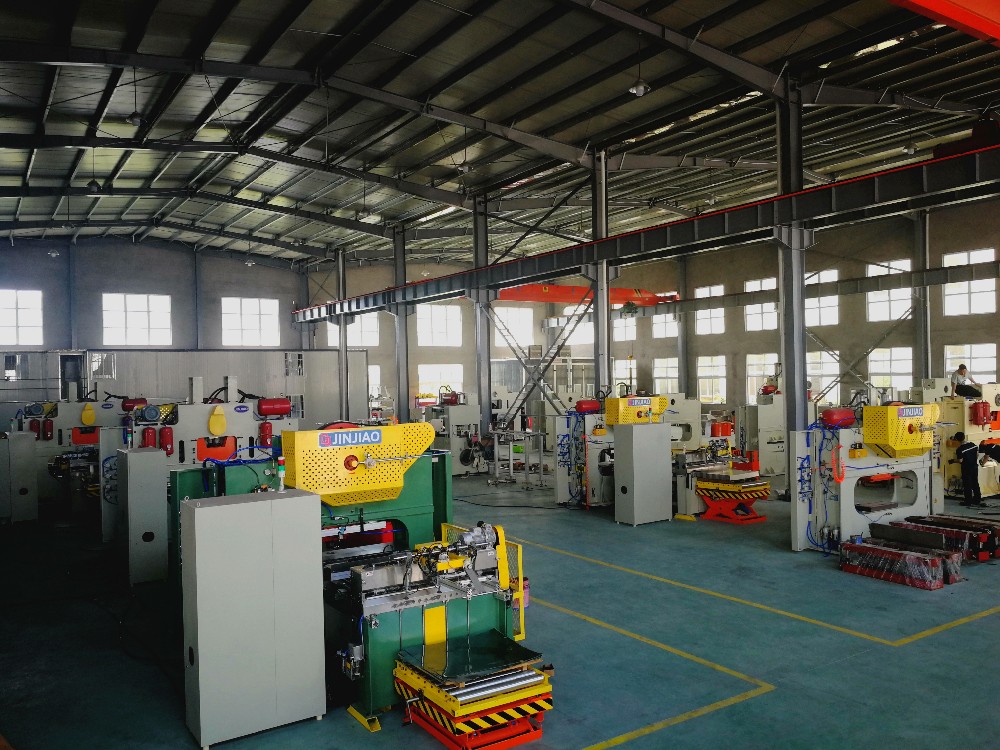

Our Factory
Packing & Delivery
Packaging
Size
9000(L) * 1500 (W) * 2800 (D)
Weight
15T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Related Products

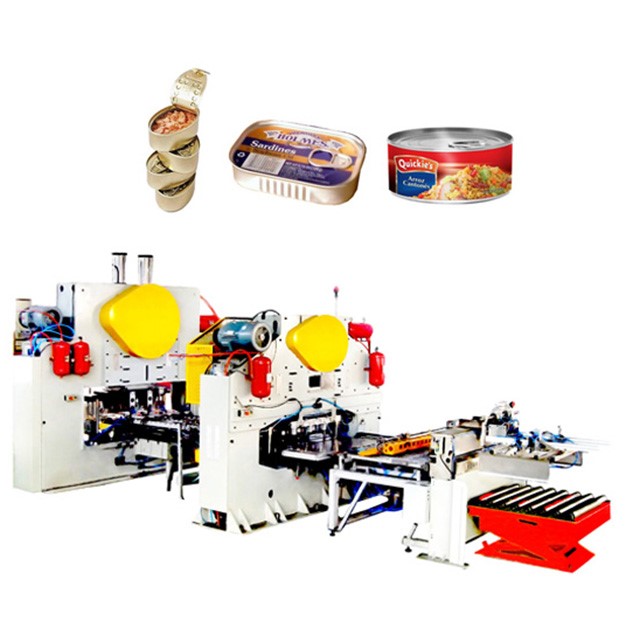

2-piece tin can making machine

91.8% Response Rate

Online Inspecting Machine

91.8% Response Rate

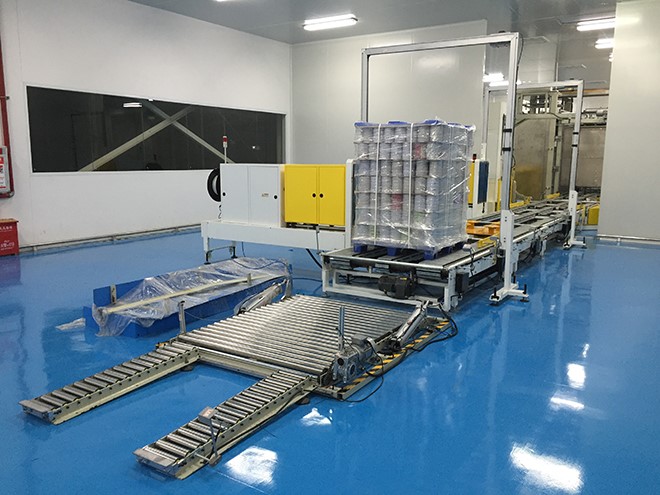

Automatic Palletizer
